1. Introduction
The CheapStat represents a paradigm shift in electrochemical instrumentation by providing an open-source, low-cost ($80) alternative to commercial potentiostats that typically cost thousands of dollars. Developed through interdisciplinary collaboration between chemistry and electrical engineering researchers at UC Santa Barbara, this hand-held device addresses the critical accessibility gap in electrochemical technology for resource-limited settings including educational laboratories and developing regions.
2. Technical Specifications
2.1 Hardware Design
The CheapStat employs a three-electrode configuration (working, reference, and counter electrodes) with operational amplifiers controlling the potential difference. The device supports voltage ranges of ±1.2V with 12-bit resolution, sufficient for most educational and field applications. The open hardware license allows complete customization and modification.
2.2 Electrochemical Techniques
The instrument supports multiple voltammetric techniques including cyclic voltammetry (CV), square wave voltammetry (SWV), linear sweep voltammetry (LSV), and anodic stripping voltammetry (ASV). This versatility enables diverse applications from trace metal detection to DNA hybridization assays.
Cost Comparison
Commercial potentiostats: $1,000-$10,000+
CheapStat: $80 (99% reduction)
Performance Metrics
Voltage Range: ±1.2V
Resolution: 12-bit
Waveforms: 4+ techniques
3. Experimental Results
3.1 Analytical Performance
The device successfully detected lead concentrations as low as 10 ppb using anodic stripping voltammetry, demonstrating sensitivity comparable to commercial systems for environmental monitoring applications. In DNA detection experiments, the CheapStat achieved measurable signal changes upon target hybridization, validating its utility in biosensing applications.
3.2 Educational Applications
In undergraduate laboratory settings, students successfully constructed and operated CheapStat devices to perform fundamental electrochemical experiments. The hands-on assembly process provided valuable insights into both circuit design and electrochemical principles, enhancing the educational experience beyond traditional pre-configured instruments.
4. Technical Analysis
4.1 Core Insight
The CheapStat isn't just a cheaper potentiostat—it's a strategic disruption to the electrochemical instrumentation monopoly. By decoupling essential functionality from expensive proprietary systems, the authors have created a platform that democratizes electrochemical analysis much like Arduino democratized microcontroller applications. This approach challenges the prevailing business model in scientific instrumentation where features are bundled into expensive packages regardless of user needs.
4.2 Logical Flow
The development follows a brilliant problem-solution trajectory: identify the cost barrier (commercial systems >$1,000), recognize the untapped market (education, developing world), engineer a focused solution (essential waveforms only), and validate through diverse applications. The logical progression from problem identification to practical implementation demonstrates exceptional engineering pragmatism. Unlike many academic projects that over-engineer solutions, the CheapStat team maintained ruthless focus on essential functionality.
4.3 Strengths & Flaws
Strengths: The $80 price point is revolutionary—comparable to the cost reduction achieved by open-source 3D printers in manufacturing. The open hardware license enables community-driven improvements, creating a virtuous development cycle. The device's validation across multiple application domains (environmental, biomedical, educational) demonstrates remarkable versatility.
Flaws: The limited voltage range (±1.2V) restricts applications requiring higher potentials. The 12-bit resolution, while adequate for educational purposes, falls short for research requiring high-precision measurements. The DIY assembly requirement creates a barrier for non-technical users, potentially limiting adoption in some educational contexts.
4.4 Actionable Insights
Educational institutions should immediately incorporate CheapStat into analytical chemistry curricula—the cost savings alone justify widespread adoption. Environmental monitoring programs in developing regions should pilot CheapStat-based testing for heavy metal contamination. Research labs should consider CheapStat for preliminary experiments before committing to expensive commercial systems. Commercial instrument manufacturers should take note—the era of thousand-dollar educational potentiostats is ending.
5. Mathematical Framework
The potentiostat operation is governed by the fundamental equation of electrode kinetics, the Butler-Volmer equation:
$i = i_0 \left[ \exp\left(\frac{\alpha nF}{RT}(E-E^0)\right) - \exp\left(-\frac{(1-\alpha)nF}{RT}(E-E^0)\right) \right]$
where $i$ is current, $i_0$ is exchange current density, $\alpha$ is charge transfer coefficient, $n$ is number of electrons, $F$ is Faraday's constant, $R$ is gas constant, $T$ is temperature, $E$ is electrode potential, and $E^0$ is formal potential.
For cyclic voltammetry, the potential waveform follows:
$E(t) = E_i + vt \quad \text{for } 0 \leq t \leq t_1$
$E(t) = E_i + 2vt_1 - vt \quad \text{for } t_1 < t \leq 2t_1$
where $E_i$ is initial potential, $v$ is scan rate, and $t_1$ is switching time.
6. Analysis Framework Example
Case Study: Heavy Metal Detection in Water Samples
Objective: Detect lead contamination in drinking water using CheapStat with anodic stripping voltammetry.
Procedure:
- Prepare electrochemical cell with three electrodes
- Add water sample with supporting electrolyte
- Apply deposition potential (-1.0V vs. Ag/AgCl) for 120 seconds
- Perform anodic scan from -1.0V to -0.2V at 50 mV/s
- Measure stripping peak current at -0.6V (characteristic of Pb)
- Quantify concentration using calibration curve
Expected Results: Linear response from 5-100 ppb lead concentrations with detection limit of ~2 ppb, suitable for EPA drinking water standards (15 ppb action level).
7. Future Applications & Directions
The CheapStat platform enables numerous future developments including integration with smartphone interfaces for data analysis and remote monitoring, development of disposable electrode cartridges for specific applications (glucose, pathogens, contaminants), and miniaturization for field-deployable environmental sensors. The open-source nature facilitates community-driven enhancements such as wireless connectivity, multi-channel capability, and advanced data processing algorithms.
Emerging applications include:
- Point-of-care medical diagnostics in resource-limited settings
- Continuous environmental monitoring networks
- Food safety testing throughout supply chains
- DIY science and citizen science initiatives
- Integration with microfluidic systems for lab-on-chip applications
8. References

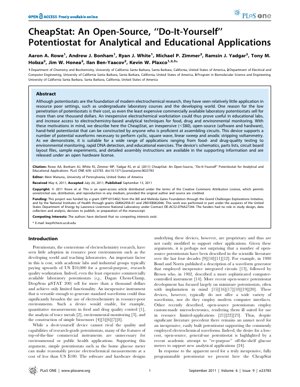

- Rowe AA, et al. CheapStat: An Open-Source Potentiostat. PLoS ONE. 2011;6(9):e23783.
- Bard AJ, Faulkner LR. Electrochemical Methods: Fundamentals and Applications. 2nd ed. Wiley; 2000.
- Wang J. Analytical Electrochemistry. 3rd ed. Wiley-VCH; 2006.
- Arduino Project. Open-source electronics platform. https://www.arduino.cc/
- NIH Point-of-Care Technologies Research Network. https://www.nibib.nih.gov/research-funding/point-care-technologies-research-network
- UN Sustainable Development Goals. https://sdgs.un.org/
Original Analysis: The Democratization of Electrochemical Instrumentation
The CheapStat represents more than just an inexpensive instrument—it embodies a fundamental shift in how scientific tools are developed and distributed. Drawing parallels with the open-source software movement and the maker revolution exemplified by platforms like Arduino, this device challenges the traditional proprietary model of scientific instrumentation. Much like how CycleGAN demonstrated that complex image translation tasks could be accomplished without paired training data, CheapStat shows that capable electrochemical instrumentation doesn't require expensive proprietary components.
The technical approach is remarkably pragmatic: by focusing on the essential waveforms needed for common electrochemical techniques and leveraging modern, inexpensive components, the authors achieved a 99% cost reduction while maintaining functionality for most educational and field applications. This philosophy echoes the minimalist design principles seen in successful open-source hardware projects like the Raspberry Pi, which prioritized accessibility over exhaustive feature sets.
From an educational perspective, the CheapStat addresses a critical gap identified by organizations like the American Chemical Society, which has emphasized the need for hands-on instrumentation experience in undergraduate curricula. Traditional laboratory courses often use pre-configured instruments that function as "black boxes," preventing students from understanding the fundamental principles of measurement. The CheapStat's open design and DIY assembly requirement transforms it from a mere measurement tool into an educational platform that teaches both electronics and electrochemistry simultaneously.
The device's validation across multiple application domains—from environmental monitoring to DNA detection—demonstrates the versatility of well-designed open hardware. This multi-domain applicability is particularly important for resource-limited settings, where specialized instruments for each application are economically impractical. The approach aligns with the NIH's emphasis on developing versatile point-of-care technologies that can address multiple health challenges with minimal infrastructure requirements.
Looking forward, the CheapStat platform could catalyze innovation in electrochemical sensing much like the open-source movement transformed software development. The availability of inexpensive, customizable instrumentation lowers barriers to entry for researchers, educators, and citizen scientists, potentially accelerating discovery and application development. As noted in the UN Sustainable Development Goals, accessible monitoring technologies are essential for addressing global challenges in health, environment, and food security—the CheapStat represents a significant step toward making such technologies universally available.
